Torsionally rigid router table due to guide columns on both sides.
Greater safety thanks to quick-acting brake and restart protection.
MMC electronics for adaptation to the working material and temperature monitoring.
Chip extraction system integrated into the router table for hose diameters D 27 and D 36.

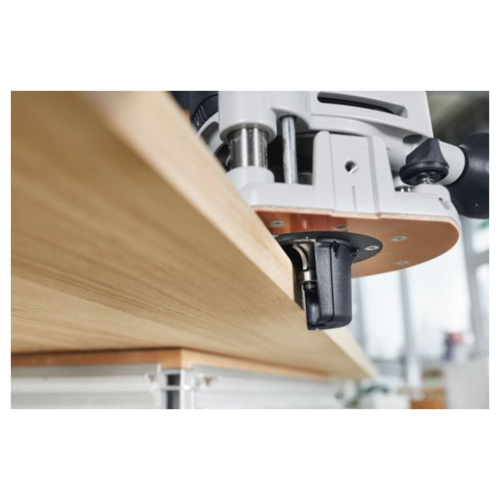

Rounding, chamfering, rebating and profiling edges.
Recessing metal fittings.
Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology).
Producing rows of holes in cabinets using the hole series system LR 32.
Fashioning wooden joints with the VS 600.
Tool Weight (kg) - 2.70 kg
No Load Speed (rpm) - 10 000 - 24 000 min?¹
Dust Extraction Connection Diameter (mm) - 27 mm
Collet Diameter (mm) 6 - 8 mm
Routing Depth Adjustment Range (mm) - 8.00 mm
Power Lead Type - Plug-it Lead
Power Source - Corded
Power Consumption (W or kW) - 1010 W
Motor Type - Brushed
Routing stroke - 55.00 mm
Bench opening - 50.00 mm

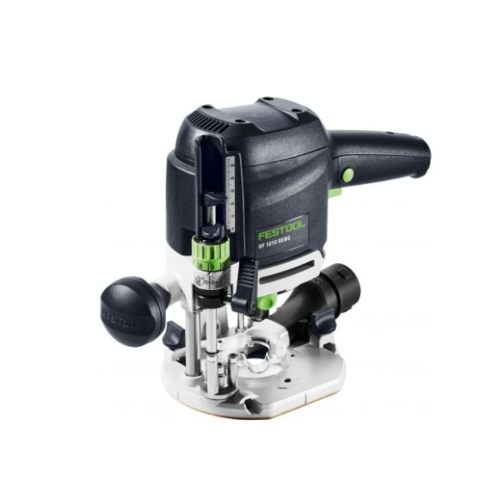

The best option for precision - The clearly visible work area of the OF 1010 R offers an unobstructed view of the router. This enables users to achieve cutting results with absolute precision.

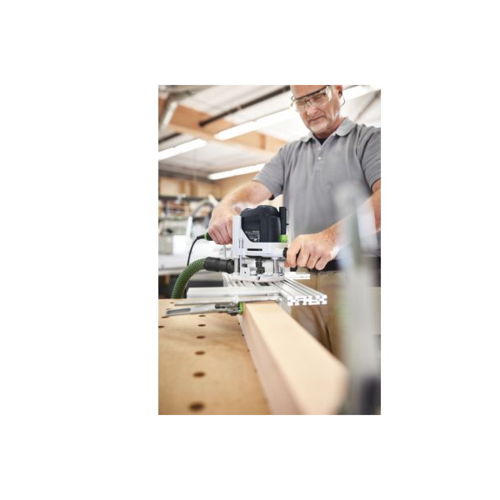

Double column clamping - The OF 1010 R is clamped to both guide columns at the same time. This means that the router is secured in place with absolute torsional rigidity. This ensures perfect routing results and time-consuming reworking is a thing of the past.
Lightweight structure with excellent ergonomics - Its ergonomic handle makes the OF 1010 R rest particularly snug in your hand and makes guiding the machine safe and convenient.
Cutter replacement in record time - The cutter of the OF 1010 R can be changed quickly and safely thanks to the easy-to-access work area.
The perfect combination for clean work - The unique chip deflector enables optimal dust extraction, and guarantees excellent suction power when routing edges in combination with the dust extraction attachment and a Festool extractor.
Fine adjustment - The OF 1010 R has a precise depth adjuster. It takes just a few seconds and minimal effort to finely adjust the routing depth accurate to a tenth of a millimetre using the dial.

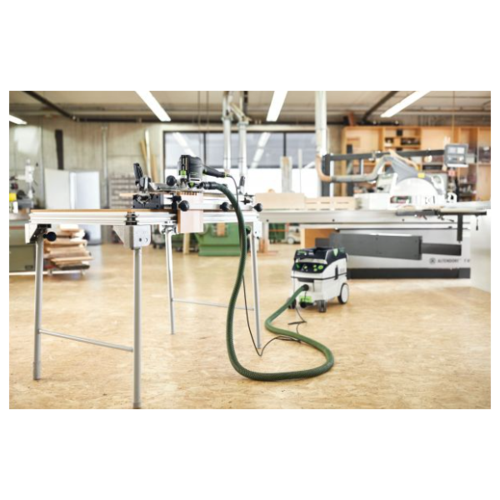

Clean and healthy working with a system - Forms the perfect combination with Festool extractors for an unobstructed view of the workpiece and for healthy, precise, time-saving work. The bayonet fitting makes it easy to attach and securely hold suction hoses D 27 and D 36.

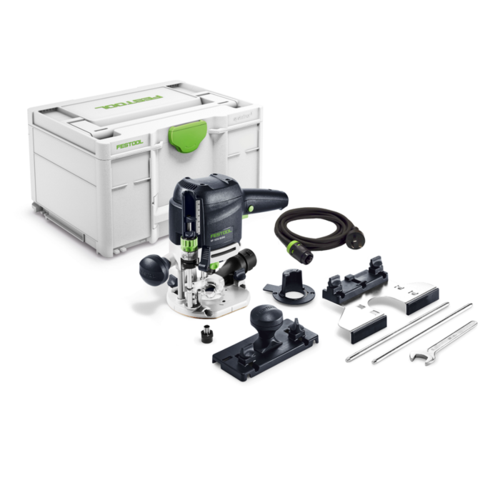

The right router for every application - Unconditional quality is uncompromising. That is why we recommend using original Festool cutters, Machines, routers and accessories – we provide optimum equipment from a single source for versatile and efficient working.

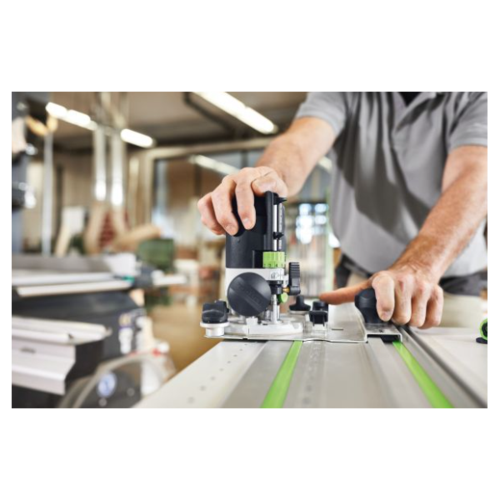

Integrated support - The OF 1010 R is fitted with a support to prevent the router from tipping over when used with the guide rail As a result, it stays in the groove and produces the desired result.

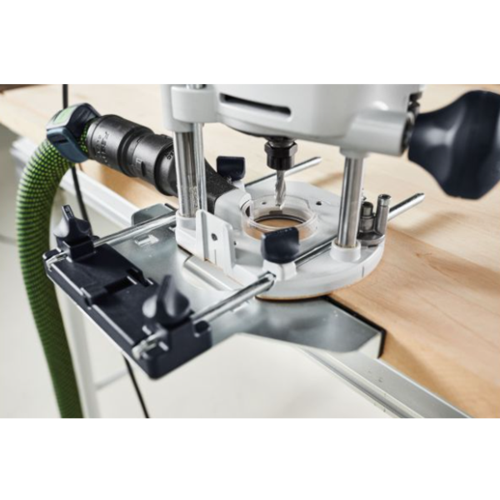

Easy to copy workpieces - Workpieces can be copied quickly using the angle arm. The arm runs along the profile of the original workpiece and this profile is then transferred to the workpiece being processed using the router.
